14cbm/14m3/14000liters Refuse Collector Transport Garbage Compactor truck

Brand Name : CLW

Model Number : CLW55YCHK

Certification : CCC,ISO,

Place of Origin : Suizhou, China

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union,, MoneyGram

Supply Ability : 500Unit Per Month

Delivery Time : 20-30 Days

Packaging Details : Naked packing,Ro-ro,Bulk Ship

Brand : FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW

Function : Garbage compactor, waste removal

Material : Carbon Steel Q235B

Thickness : Side 4 mm and Bottom 4 mm

Tank volume : 10cbm/10000Liters/12cbm/12m3/ 10tons

Wheel Base : 4200mm 4500mm

Horsepower : 170HP 190HP

Hydraulic Pump : Chinese Famous Brand

Control system : Siemens brand operate system.

Warranty : 1 Year

Control : Both manual and electric control

Color : Customized

Contact Now

Refuse Collector Transport Garbage Compactor truck

Product Descriptions

Widely used
Support customized
Heavy load
Simple operation
Plate thickening
Fully function

Product Specifications

Truck Chassis Specification
Chassis model		CLW5
Cab		Dongfeng single row cab
Driving Type		4*2 Left or right hand driving
Max Speed (km/h)		98
Overall dimension(mm)		8800, 8550, 8600, 8350 × 2490 × 3250
GVW( kg)		15800
Mass in working order ( kg)		5755,5820
Wheelbase(mm)		4200mm 4500mm
Front/Rear track (mm)		1880,1800
Approach/Departure Angel		24/12
Tire		9.00r20, 6+1 pcs
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		6-speed
Enging	Model	Cummins 170hp 190hp
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke, direct injection, turbocharged
Braking system	Service Brake	Oil brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /5(mm) rear
Dirty tank volume		10cbm/10000Liters/12M3/12cbm
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

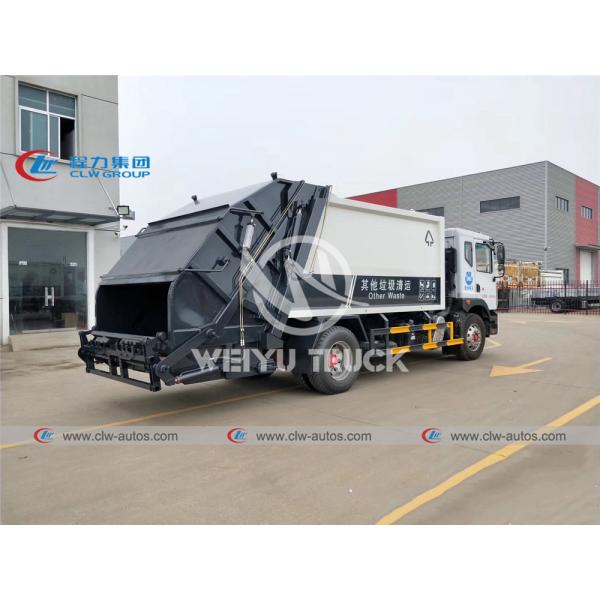

Reference photos

14cbm/14m3/14000liters Refuse Collector Transport Garbage Compactor truck

Diagram of compactor garbage truck

14cbm/14m3/14000liters Refuse Collector Transport Garbage Compactor truck

Main parts of garbage truck

14cbm/14m3/14000liters Refuse Collector Transport Garbage Compactor truck

Factory overview

14cbm/14m3/14000liters Refuse Collector Transport Garbage Compactor truck
