Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

Name: Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket
Brand: CLW
Price: 28520 USD

Cheap Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket wholesale

Brand Name : CLW

Model Number : CLW5310TFCZ3

Certification : ISO, CCC

Place of Origin : Suizhou,China

MOQ : 1 UNIT

Price : 28520 usd/unit~125660 usd/unit

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 300units/month

Delivery Time : Within 60days after received advance payments

Packaging Details : Naked package shipped by bulk ship

Spreadig width : 4000mm

Asphalt sprayer volume : 0.5~3.0L/m3

Spraying Medium : Hot bitumen, hot modified bitumen, Emulsified asphalt

Size of asphlat volume : 8m3

Size of gravel volume : 12m3

Burner : Italy brand G20

variable displacement piston pump : A11V060EP2D/10R

Asphalt pump : TG GP185-125/Belgium brand

Asphalt motor : L2F107W2P2 chinese brand or XM05-90-8G-D40 italy

generator : Honda 6kw gasoline generator

Control system : CLW-32-01 from germany

Rear monitor : 7 ", color screen real image

Mixer motor : Eaton/USA brand

Truck brand : Howo,Shacman,ISUZU,Dongfeng,FAW

Contact Now

Description--Synchronous chip sealer,also called synchronous gravel sealing truck refers to the simultaneous spraying of asphalt binder and sprinkling of aggregate,so that the most adequate contact between asphalt binder and aggregate can be achieved.
--Compared with ordinary crushed stone sealing layer truck or machine, Synchronous chip sealer shorts the time interval between spraying binder and sprinkling aggregate, so that the aggregate particles can be better implanted into the binder, so as to obtain more covering area.
--It is easier to ensure a stable proportion between the binder and the stone chip, improve the productivity, reduce the mechanical configuration and reduce the construction cost.
--Better anti-skid and anti-seepage water performance,effectively cure the hazards such as oil deficiency, grain dropping, slight mesh cracking, wheel rutting and subsidence.
--Type of bitumen:Hot bitumen, hot modified bitumen, diluted bitumen, emulsified bitumen, rubber modified bitumen(with viscosity Haake 190ºC,1500~2000Pa.s;spaying temperature 200~210 ºC,spraying width 4000mm)

Why do you choose CLW group Synchronous chip sealer?

★Accurate spraying amount, perfect realization of asphalt spraying three overlapping, good uniformity.
★ Intelligent control of sprinkling (sprinkling), real-time monitoring of sprinkling quantity and speed, closed-loop control

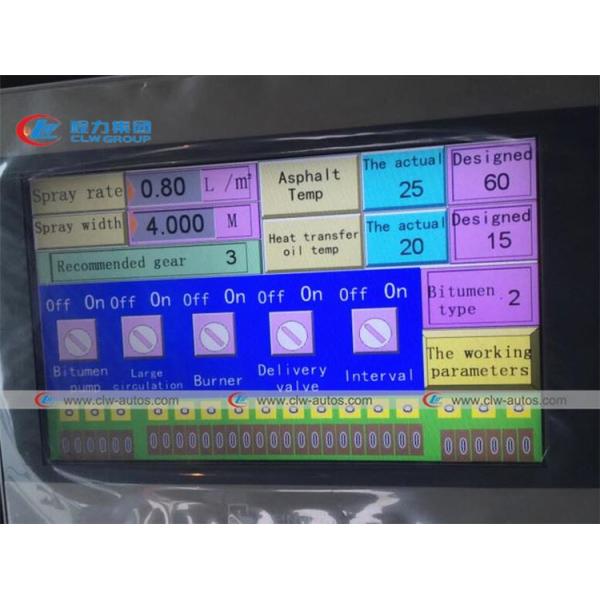

★ Full computer touch screen operation, equipped with video monitoring system, can observe the whole working process at any time;
★ Reliable performance and convenient operation
★Zero-start in-line spraying (strong spraying system and asphaltene in-line spraying system)
★ The control system adopts modular design (low failure rate, quick and easy maintenance).
★The most effective heating system and circulating heat preservation system ensure the unimpeded flow of pipes and nozzles without diesel cleaning
★ Equipped with a flexible asphalt hand spray system, it can spray asphalt on special parts of the road
★The nozzle and the feed door are fully pneumatic, and each feed door and the feed door are individually controlled by the computer
★ The width of the cloth can be adjusted at any time during the process of spreading
★With self-suction efflux function, it can add self-discharge asphalt to improve work efficiency
★Equipped with a system, in case of failure of the main control system, can manually sprinkle (scatter) cloth
★ Compact structure, beautiful appearance, flexible u-turn at high speed.

Specifications

Truck Specification
Cab		HW76 cab, with power steering,with A/C
Driving Type		8*4
Max Speed (km/h)		80
Overall dimension(mm)		1200025003850
GVW( kg)		31000
F/R overhang (mm)		1500/1945, 1920
Approach/Departure Angel		16/23
Tire		295/80R22.5
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Bridge	Front axle	HF7
	Rear axle	ST16
Engine	Model	WD615.69 / EURO II
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	9726
	Max output power/rotate speed (hp /rpm )	336
Braking system	Service Brake	Air over hydraulic dual circuit system
	Park Brake	Mechanical, internal expanding acting on transfer output shaf
Eletric system		24v
Upper-Body specification
Capacity		9m3 Asphalt tank + 14m3 gravel tank
		Emulsified bitumen, hot bitumen (rubber modified bitumen has to use imported configurations)
Asphalt pump		Model	QGB950
		Discharge(L/min)	950
Distribution width measurement(mm)		4000
Burner		G20 (from Italy)
Control method		Automatic controlled one by one (32 intelligent nozzle)
Heating Model		Thermal fuel automatic heating
Conducting system		Germany STW module, computer screen control in the cab

Reference picture

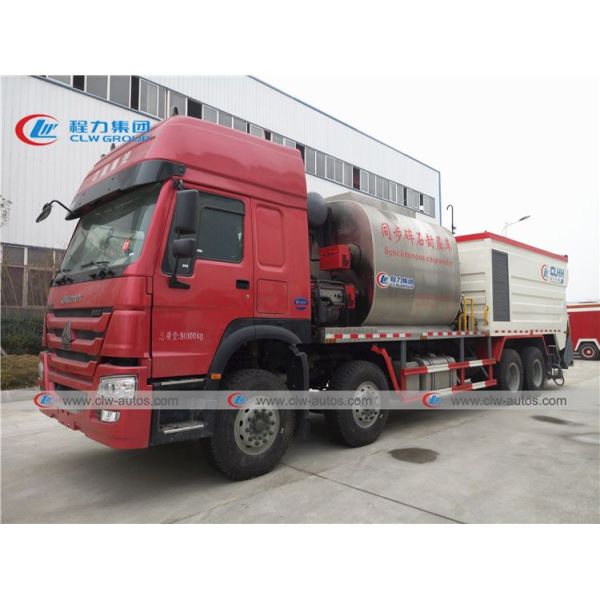

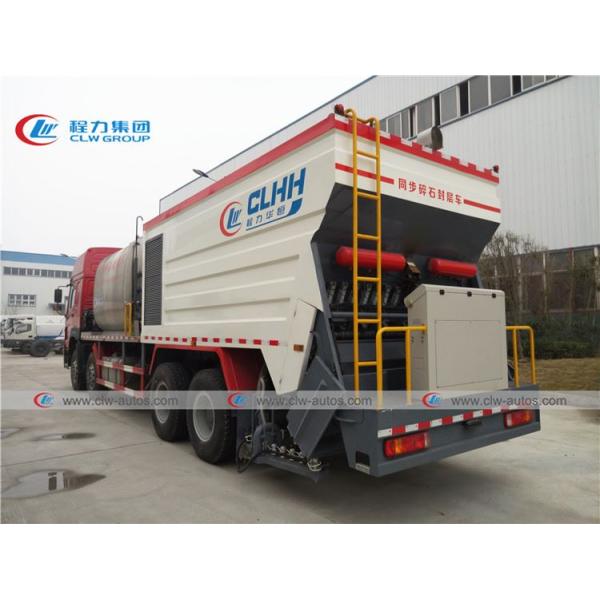

★Howo 8X4 Synchronous chip sealer
